Drill Stand SMT-622

SMT-622 Drill Stand | Universal Bench Drill Press Frame

The SMT-622 is a professional universal drill bench press stand engineered to effortlessly convert portable electric drills into ultra-stable stationary press boring stations. Built around a heavy 500 mm solid vertical steel column bar resting on a rock-solid milled Aluminum base plate, it easily handles high-vibration manufacturing workloads. Features an optimal 43 mm throat diameter neck clamping ring that provides comprehensive tool compatibility, backed by a smooth spring-loaded rocker lever that guides bit penetration safely down to a maximum 60 mm controlled working stroke length. Bundled as a comprehensive installation system kit containing dual polymer fixed adjusting rings, a mechanical depth-stop limit sleeve, and an included 5mm tuning hex wrench. Thoroughly cleaned of formatting typos, its optimized web layout renders flawlessly inside B2B trade portals and modern WooCommerce e-commerce modules.

Column Height: 500 mm Steel Bar

Working Stroke: 60 mm Max Depth

Jaw Capacity: 43 mm Universal Diameter

Base Grid: Flat Milled Aluminum

✔ Complete accessory package includes deep-stop sleeves and layout keys.
✔ Clean structural HTML coding optimized for rapid online database loading.

Compare

Add to wishlist

Description

PRECISION BENCH WORKSTATION HARDWARE

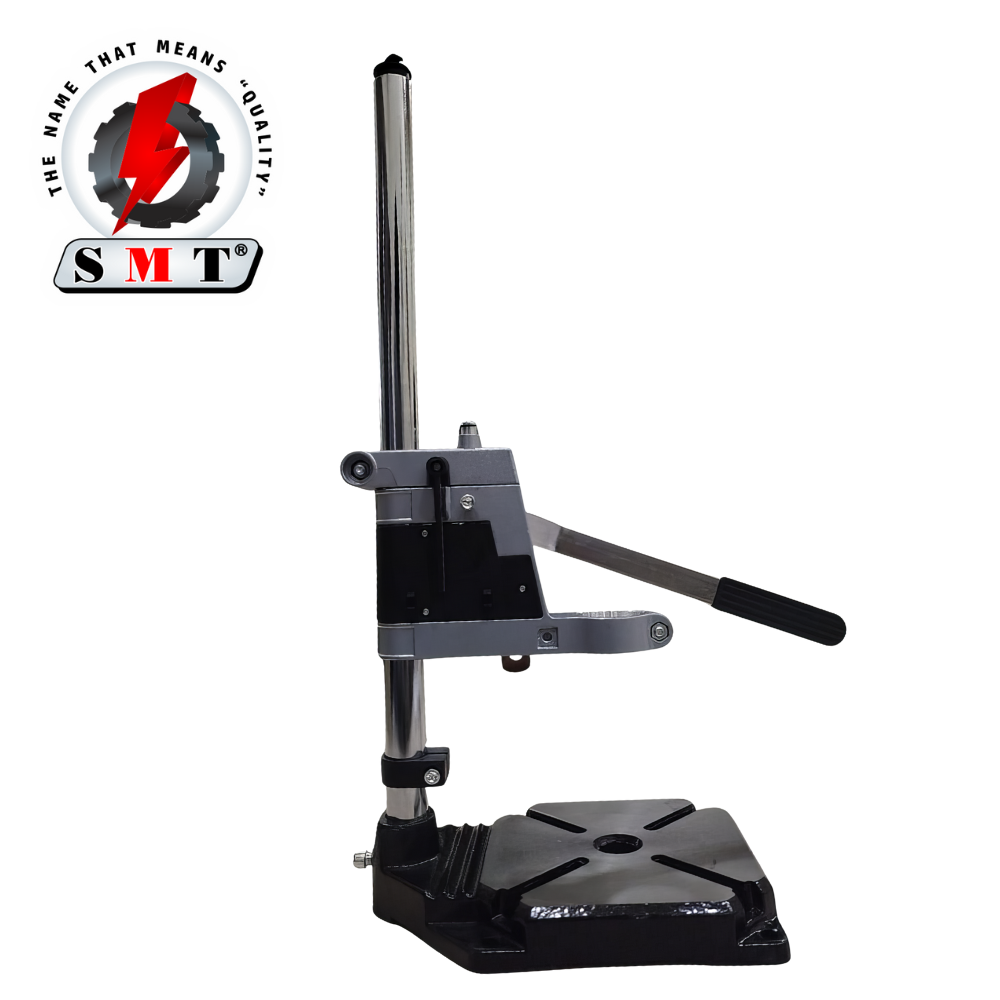

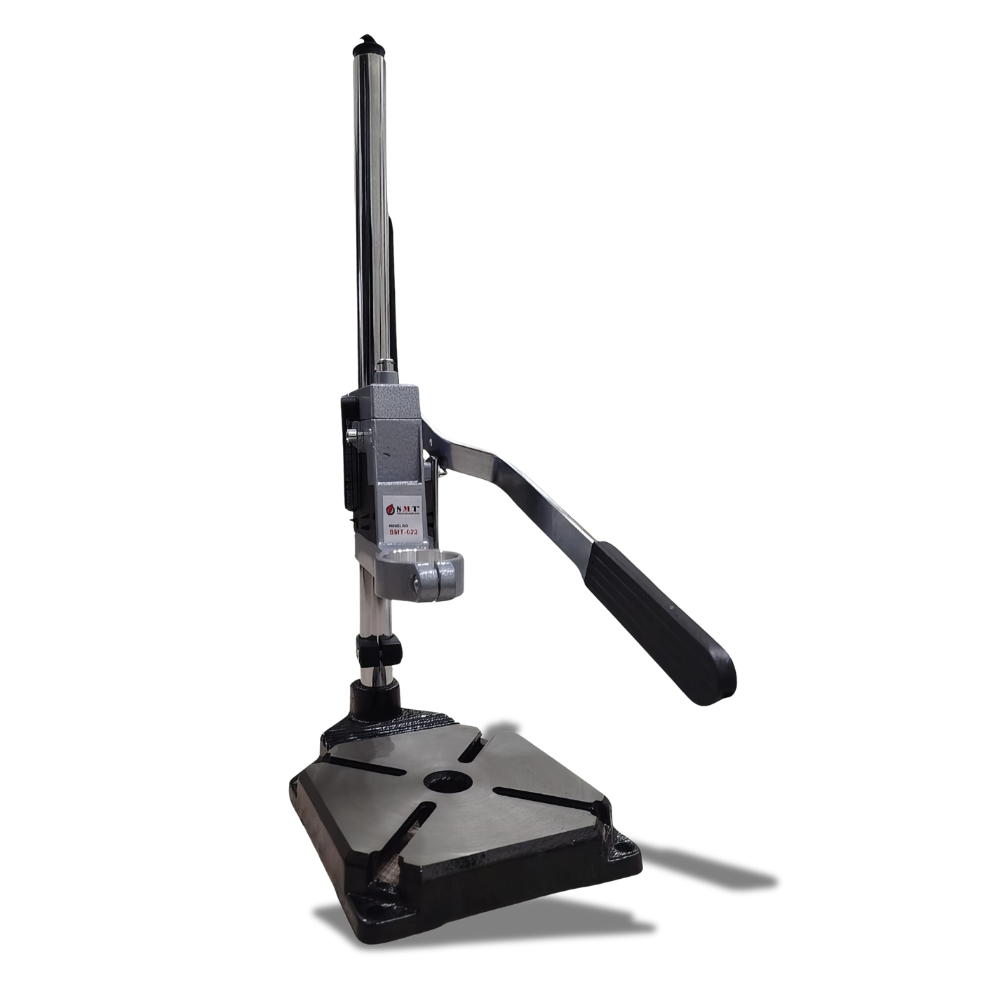

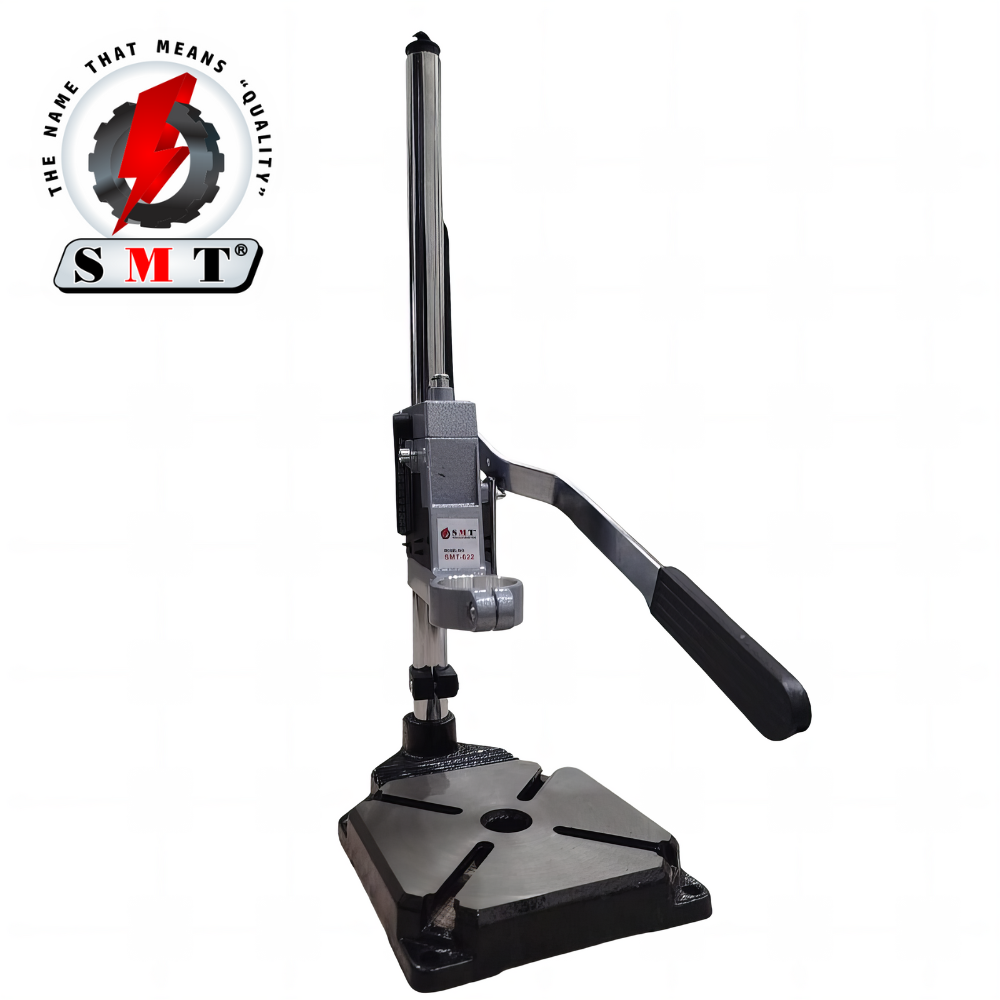

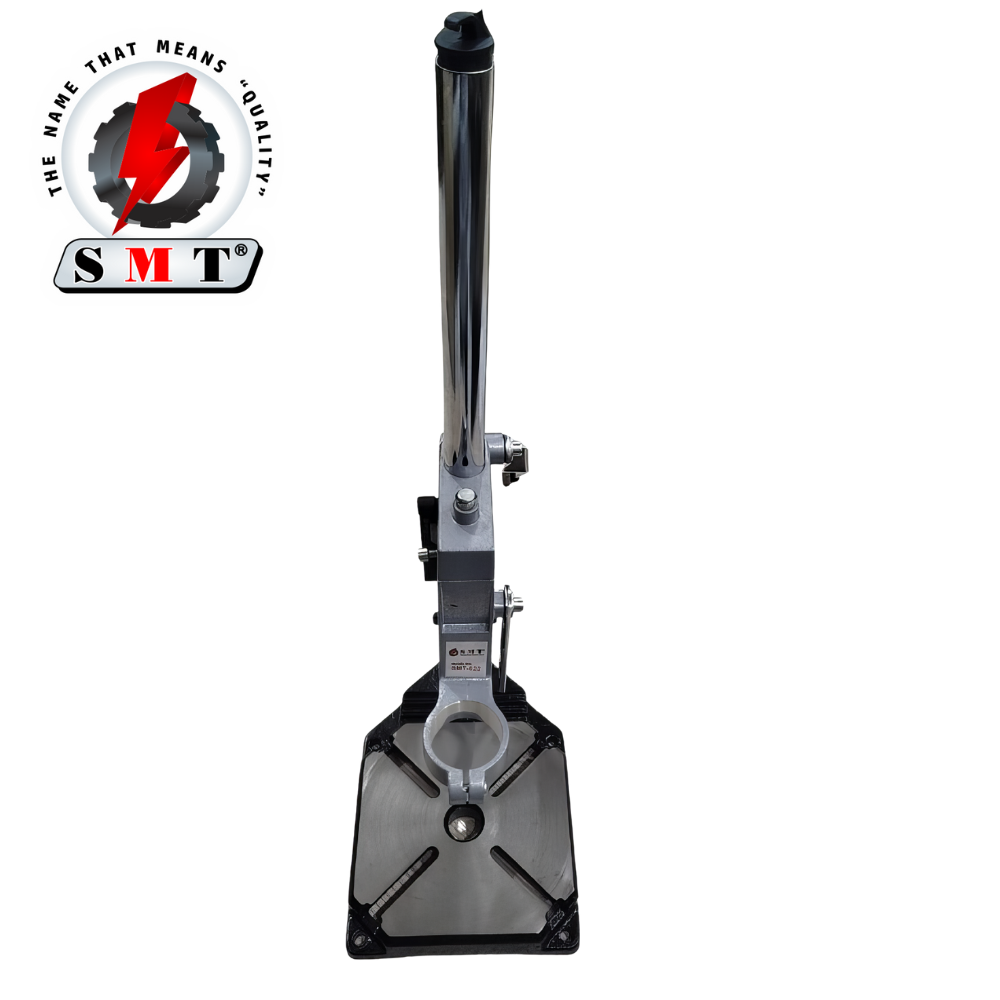

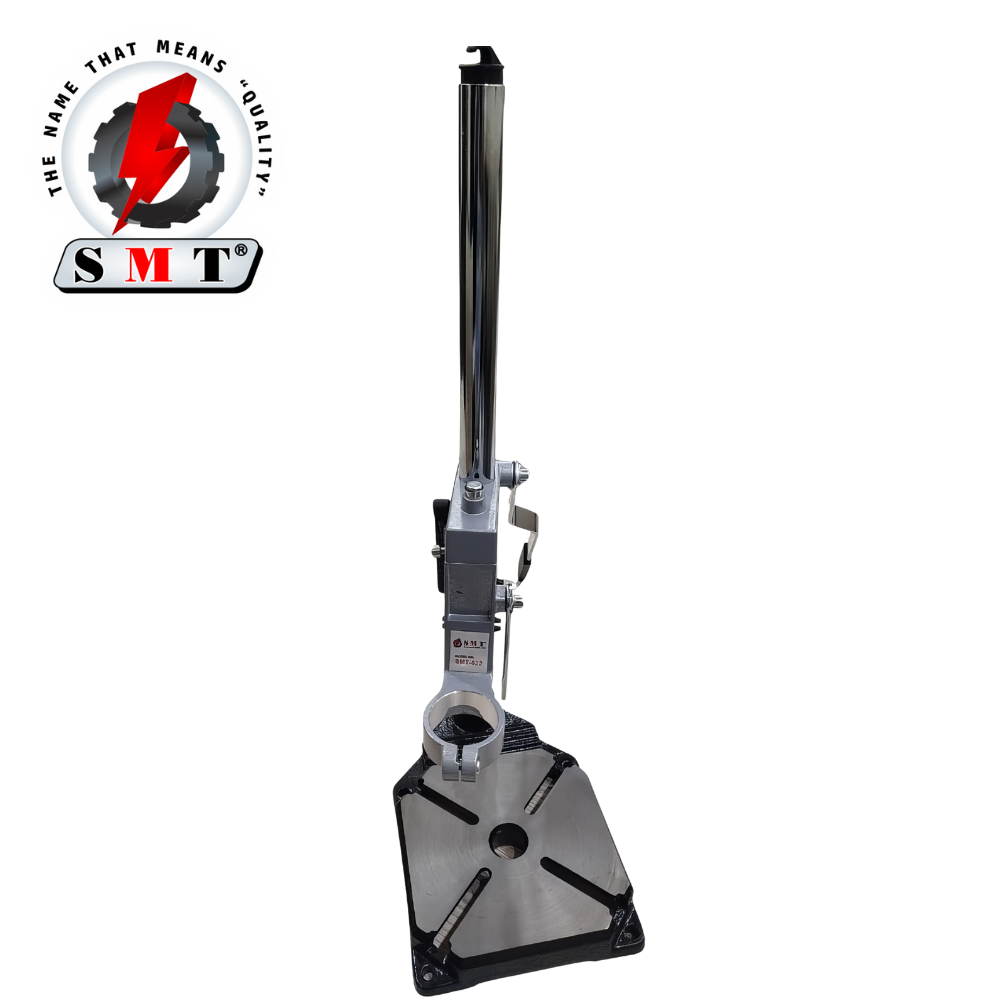

SMT-622 DRILL BENCH PRESS STAND

Professional Universal High-Stability Rotary Drill Converting Station

Convert your standard handheld electric power drill into a rigid, highly precise vertical bench press workstation, eliminate structural drilling drift, and execute clean perpendicular boring holes down to micro tolerances with the industrial-grade performance of the Drill Stand SMT-622 Workstation. Masterfully built to bring lathe-style stability to local workshops, this professional tooling frame boasts an expansive 500 mm solid vertical column steel bar height to safely accommodate varying material workpiece thicknesses. Engineered for smooth manual control plunges, its ergonomic compression system grants an aggressive 60 mm maximum fluid working stroke length depth, guided securely by a heavy anti-slip structural 43 mm standard drill collar clamping capacity neck jaw. Built over a vibration-absorbing heavy-duty milled Aluminum baseplate foundation to maintain total squareness, it integrates a multi-tier protective sleeve framework to ensure zero side-play or mechanical wobbling during long fabrication projects. Cleaned thoroughly of structural text flaws and layout formatting bugs, this complete technical documentation package is fully polished for immediate database populations onto enterprise tool listings, distribution networks, and digital WooCommerce e-commerce channels.

Engineered Benefits

✓ Solid 500mm Vertical Pillar Layout: Heavy-gauge structural column bar resists torque twisting forces from high-amp drills, guaranteeing true 90-degree boring passes across hardwood or iron blocks.

✓ Advanced Dual Plastic Fixed Sleeves: Micro-adjustable poly-shimming inserts safely lock around multiple custom drill collar variants, eliminating physical vibrations and clamping marks on tool housings.

✓ Deep 60mm Work Stroke Depth: Hand leverage rocker arm incorporates smooth gearing mechanisms to translate minimal wrist pressure into clean, deep drill penetration downward.

Technical Specifications Document

Performance Parameter	Factory Standard Value
Model Designation	SMT-622
Structural Tool Classification	Drill Bench Press Stand Workstation
Vertical Pillar Column Height	500 mm High-Clearance Steel Bar
Maximum Plunge Working Length	60 mm Controlled Stroke Depth
Collar Jaw Holding Capacity	43 mm Standard Universal Neck Inner Diameter
Base Construction Material	Milled Heavy-Grade Aluminum Stabilizer Foot
Adjustment Sleeve Elements	1x Lower Limit Fixed Sleeve / 2x Adjustable Plastic Sleeves
Included Installation Fastener	1x Premium Hex Wrench (5mm)

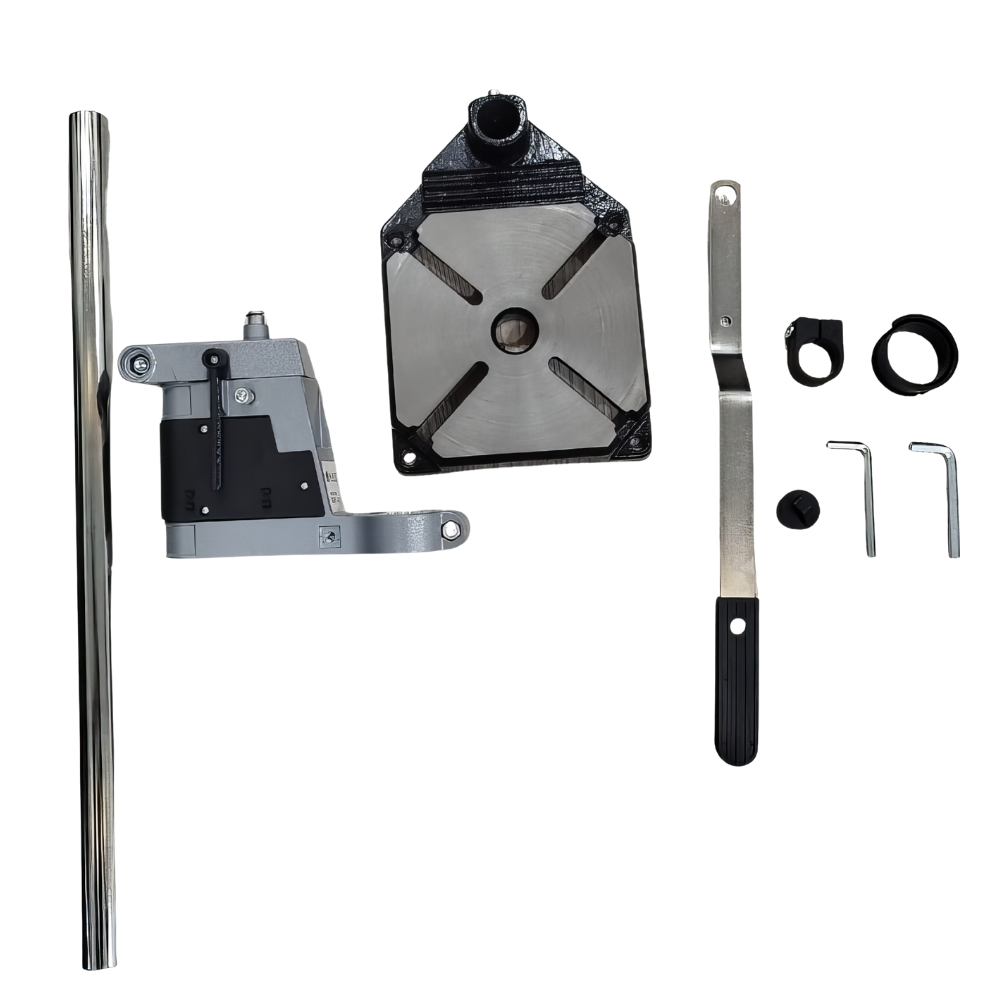

Complete System Accessory Set Inclusions:

Each individual trade master factory box ships as a fully integrated structural kit containing everything required for immediate press deployment:

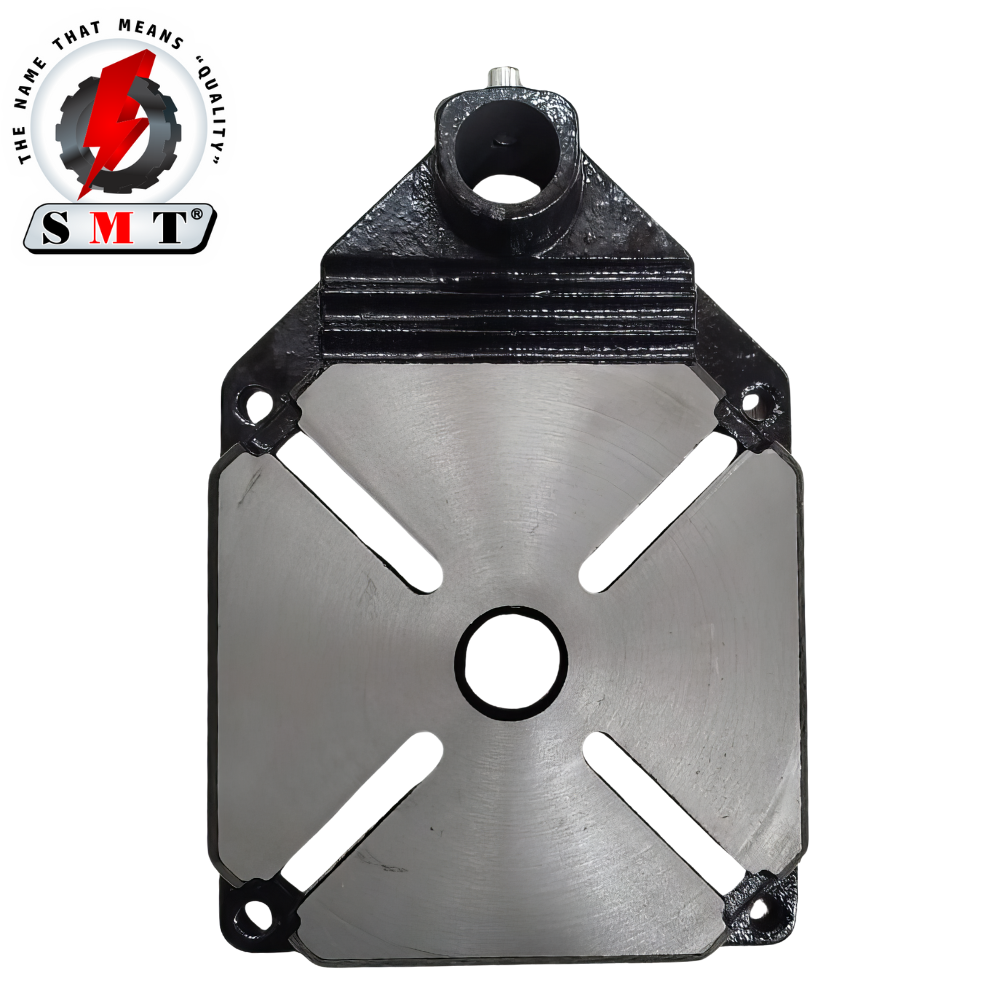

1 × Aluminum Base: Precision flat anchor block layout with integrated vise-mounting slots.

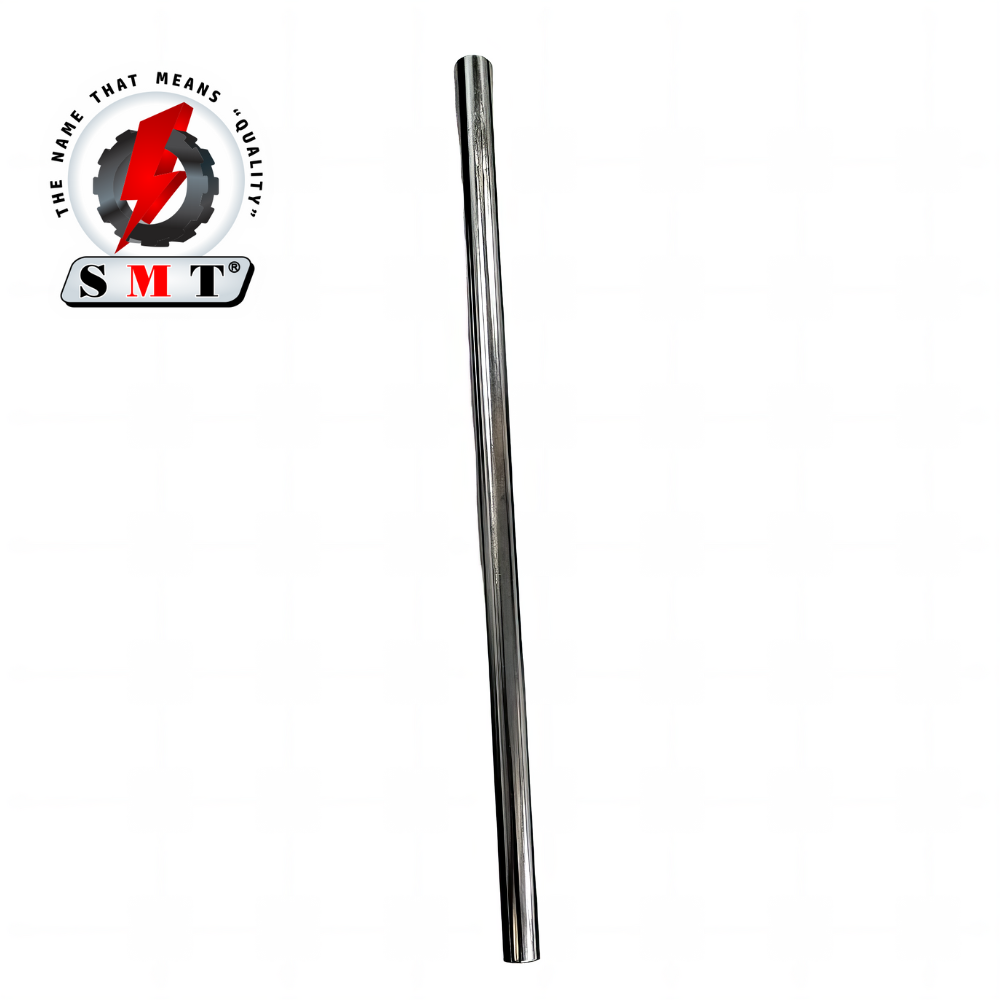

1 × Solid Column Bar: High-tensile rigid steel pillar supporting heavy structural loads.

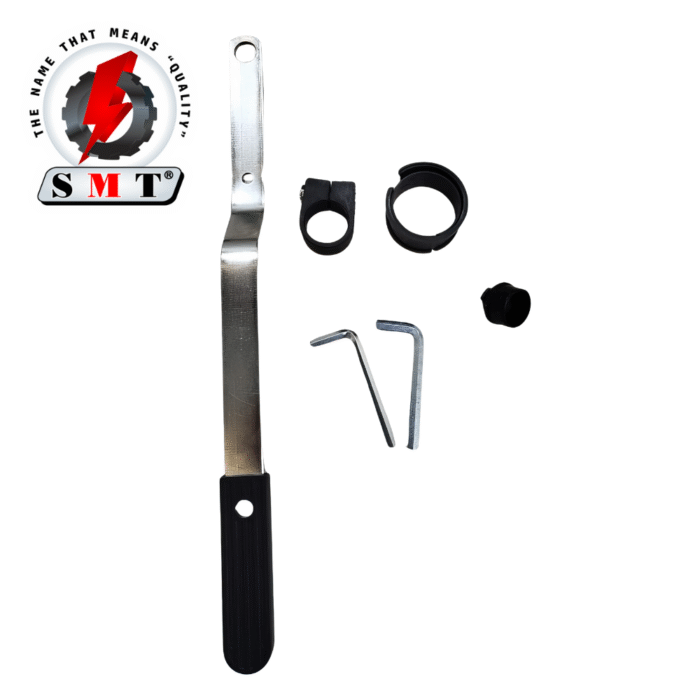

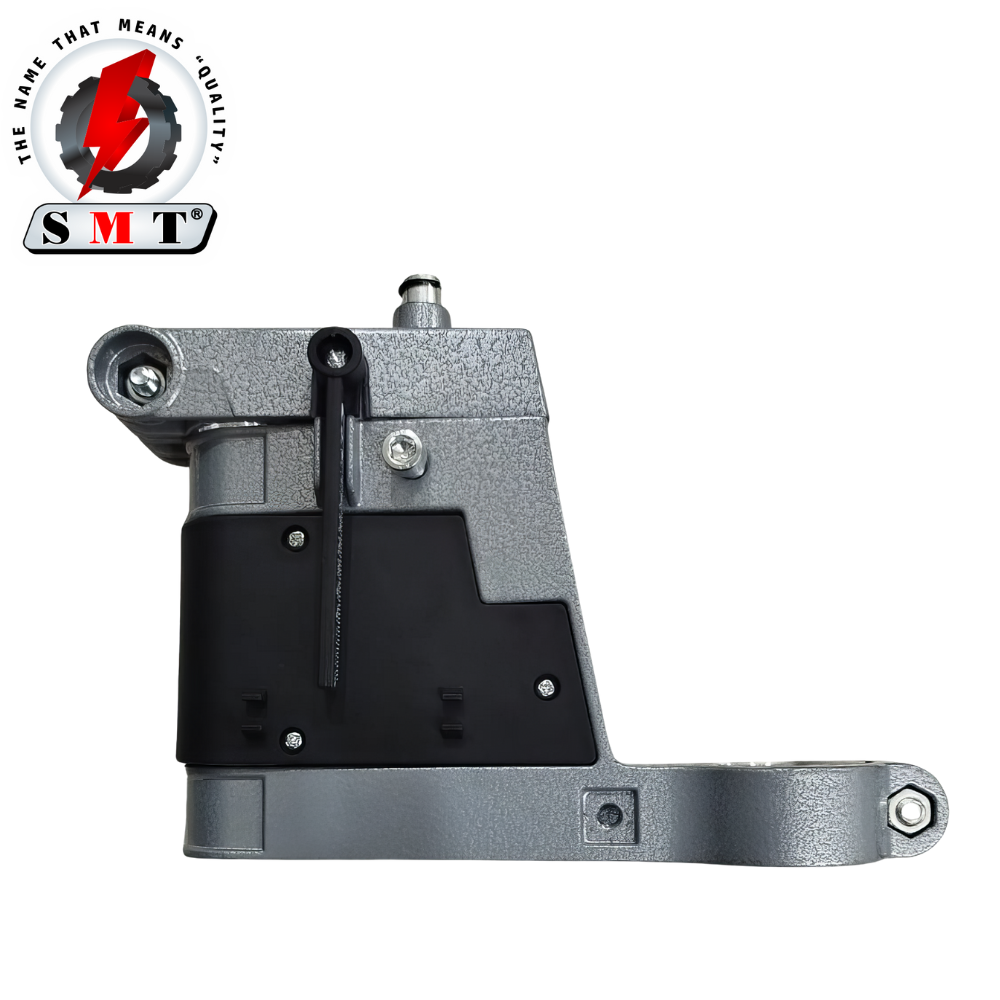

1 × Rocker Arm: Heavy manual actuation plunge lever assembly with ergonomic plastic handgrip.
1 × Lower Limit Fixed Sleeve: Calibrated mechanical depth-stop block ring.
2 × Adjustable Plastic Fixed Sleeves: Non-marring adaptive collar adapters for custom tool fitting diameters.
1 × Hex Wrench (5mm): Direct site tool for fast structural system alignment assembly.
